1/2" 1/4'' hot dip electro galvanized welded wire mesh for Protection and Construction
Product Description

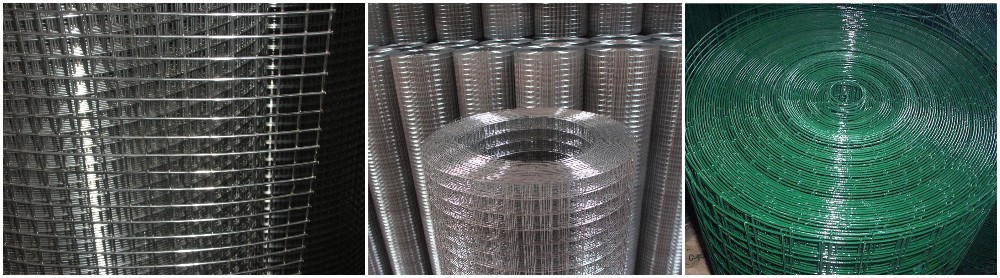

Welded wire mesh,is made from choice plain steel wire and stainless steel wire,which shows good corrosion-resistance and oxidation resistance,widely used for poultry houses,egg baskets,runway enclosures,draining racks,porch guards,rat-proofing,safety guards on machines,animal and plant pens and shelves,etc
material:
galvanized iron wire,
low carbon steel wire,
pvc coated iron wire,
stainless steel wire
tecnique:
electro hot dipped
galvanized after welding
electro or hot dipped
galvanized before welding
roll size:
3'*100',4'*100',5'*100',
3'*50',4'*50'.5'*50', 1m*30m.
Specification List of Welded Wire Mesh
Opening
Wire Diameter
In inch
In metric unit(mm)
1/4" x 1/4"
6.4mm x 6.4mm
22,23,24
3/8" x 3/8"
10.6mm x 10.6mm
19,20,21,22
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21,22,23
5/8" x 5/8"
16mm x 16mm
18,19,20,21,
3/4" x 3/4"
19.1mm x 19.1mm
16,17,18,19,20,21
1" x 1/2"
25.4mm x 12.7mm
16,17,18,19,20,21
1-1/2" x 1-1/2"
38mm x 38mm
14,15,16,17,18,19
1" x 2"
25.4mm x 50.8mm
14,15,16
2" x 2"
50.8mm x 50.8mm
12,13,14,15,16
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request.
galvanized before welding galvanized before welding pvc coated
Why us
Our product is made of superior quality low carbon steel wire, with flat even surface, firm structure, be used extensively in building(reinforcement rebar mesh, plastering mesh, floor heating system mesh),Municipal Building(wire mesh fence, gabion mesh), agriculture(chicken cage, rabbit cage,bird cage,tomato cage, etc.)and so on.
We have advanced equipment,
rich expertise and scientific production procedure,
strict quality control system and professional service.

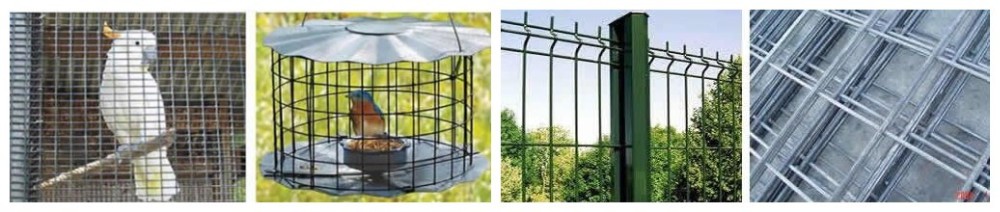

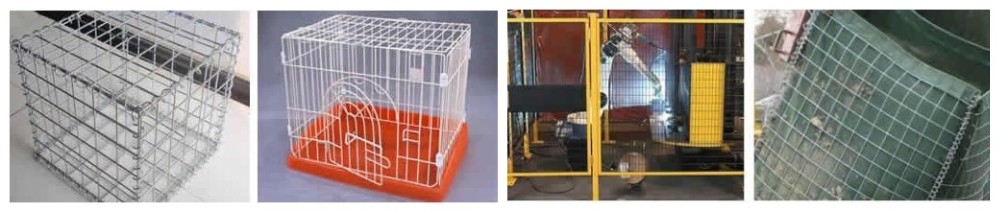

Welded wire mesh can be used in the industry , agriculture , construction , transport and mining . Suchas machine protection cover , garden fender , window protection fender , passage fender , fowl cage , egg basket and foodstuffs basket .
bird cage bird cage welded wire mesh fence construction
